Re: data resampling



Dear Juan Wu

'downsample' does not take care of aliasing, you would have to apply an anti-aliasing filter yourself beforehand, to make it work properly.
'resample' should be just fine (for integer resampling factors you could also use 'decimate').

Greetings
Alex

Am 14.08.2014 01:05, schrieb Juan Wu:
List experts,

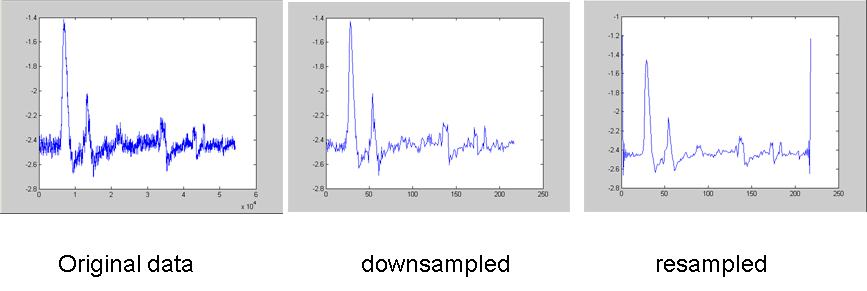

I am attempting to down sample my data from 300 Hz to 1 Hz. I just tried two functions of Matlab: 1) a = resample(Data,1,300); 2) b = downsample(Data,300). The results are quite different between each others.

Inline
          image 2

Apparently, the result from "downsampled" is close to the the original data. However, quite a few persons suggested using the re-sampling method - I get this information from google searching, and very agree with this view. Personally I think the downsample method is too simple and very arbitrary. I also do not believe the "Nearest Neighbor" method. I assume that the method resampling takes both "FIR interpolator and decimator" implementation - this is what I expected. Am I right?  But now my output from the re-sampling method is really very terrible. So I assume that the resample function from Matlab does not do a good job for this. I am not sure whether I need change to use other softwares or try other functions in the Matlab.

Any opinions or references are much appreciated.
J



/*-------------------------------------------------------------------------
